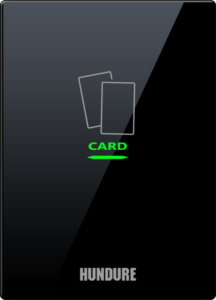

PXR-14(K) Series
Glass Faceplate Reader
- Flush mount design; Looks great to match with modern interior decoration.
- Provides dual interface (Wiegand and RS-485) model to meet different project requirements and reduce inventory costs. (Some models. Please refer to Order Information)

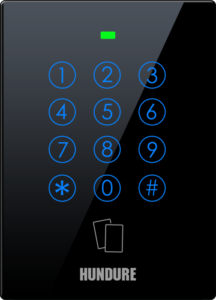

- Slim, stylish design, capacitive touch keypad with blue backlight. (Keypad reader)
- Provide RS-485 communication interface for long distance installation. (Some models. Please refer to Order Information)
- Wide range of operating temperature to meet the requirments of tropical or frigid zone climate environment.
Specification：
| Read Format | MIFARE? (13.56 MHz) |
| Comm. Interface | Wiegand / RS-485 (Please refer to Order Information) |
| Input Ports | Case Sensor x 1 |
| Power Input | DC 12V / 1A? |
| Current Consumption | 300mA (max.) |
| Operating Temp. | -20° C~70° C / -4° F ~ 158° F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension |
Faceplate：122mm(L) x 88mm(W) x 13mm(H) Backside box：65mm(L) x 58mm(W) x 24mm(H) |
Product?Information：
| Model | Description | Downloads |
| PXR-14MW | Support Wiegand，MIFARE? (13.56 MHz)? reader |  |
| PXR-14MS | Support RS-485，MIFARE? (13.56 MHz) reader | |
| PXR-14MWSK | Support Wiegand and RS-485，MIFARE? (13.56 MHz) keypad reader | |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | PXR-14MW | |
| Quick Start Guide | PXR-14MS | |
| Quick Start Guide | PXR-14MWSK | |
