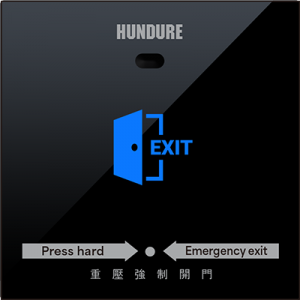

HPB-10P-E
Smart Exit Switch
- Adopt non-contact infrared sensor.
- Provide both exit button and emergency push button function. In case of emergency, just press the exit button, and the door will be forced open.
- When in standby mode, the light is blue. When there is an object within the sensing distance, the light is green. Relay is triggered to open the door.
- Able to connect the external alarm.
- Equipped with fire alarm sensor input, it can be directly connected to the fire alarm system to activate the emergency door opening.
- Able to set the Pulse door opening time from 1 to 15 seconds. (default 4 seconds).
- The emergency push button uses a pressure sensor, which can be triggered when the force reaches 3Kg and can be used repeatedly.
- The detection signal supports free from retrigger.
- Support IP65 rated ingress protection.
Specification：
| Sensor | Infrared Sensor x 1 Pressure Sensor x 1 |
| Sensing. Distance | 5~10cm |
| Input Port | Fire Alarm Sensor x 1 |
| Output Port | Relay × 2 (Exit Button/Emergency Push Button), O.C x 1 (Alarm) |
| LED Indicator | Blue x 1, Green x 1, Red x 1 |
| Power Input | DC 12V / 500mA |
| Ingress Protection | IP65 |
| Operating Temp. | -30°C ~70°C / -22°F ~158°F |
| Relative Humidity | 20% ~ 80% (Non Condensing) |
| Dimension (mm) | Faceplate Size: 86 (L) x 86 (W) x 10 (H) Control Box Size: 51 (?) x 24 (H) |
Product Information：
| Model | Description | Downloads |
| HPB-10P-E | Smart Exit Switch |  |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | HPB-10P-E | |
