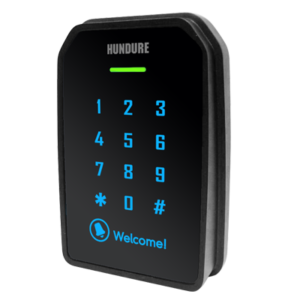

RAC-A10 Series
Standalone Access Controller
- Slim, stylish design, capacitive touch keypad with blue backlight, suits for various locations.
- Provides RS-485 communication.
- Supports network or standalone operation.
- With a doorbell key for connecting external doorbell device.
- Conditional Unlock Door function, allows to set the door-open period each time.
Feature：
?
- Slim, stylish design, capacitive touch keypad with blue backlight, suits for various locations.
- ?Provides RS-485 communication.
- Supports network or standalone operation.
- With a doorbell key for connecting external doorbell device.
- Unique ID or Block reading format supported and programmable key value.
- Conditional Unlock Door function, allows to set the door-open period each time.
- Supports entry modes card-swiping and card-swiping with password ; allows to set door-open duration.
- Duress card / code setting. When door opened in the emergency, controller will send signal to control center at the same time for tracing and rescue.
- Reader tamper proof detection and door tamper alarm. Programmable door sensor detection time and able set alarm type by relay or reader beep .
- Watchdog function secures system free from halting.
- Supports Anti-Passback if connecting with a slave reader
- Conforms to ISO 14443A, supporting MIFARE? card.
Specification：
| Read Foramt | MIFARE? (13.56 MHz) |
| Slave Reader | T2 or Wiegand (1 set) |
| Input Ports | 3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1) |
| Output Porst (Built-in) | Relay x 1 (Door Lock) |
| Output Porst (External) | O.C. Output x 2 (Door Lock / Alarm, external ACU-30) |
| Cardholders / Events | 1,024 / 800 |
| ID Setting | DIP switch |
| Power Input | DC 12V / 1A? |
| Current Consumption | 250mA (max.) |
| Comm. Interface | RS-485 |
| Operating Temp. | -20° C~70° C / -4° F ~ 158° F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension | 120mm(L) x 80mm(W) x 27mm(H) |
Product?Information：
| Model | Description | Downloads |
| RAC-A10PM | MIFARE? (13.56 MHz) access controller |  |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | RAC-A10 Series | |
