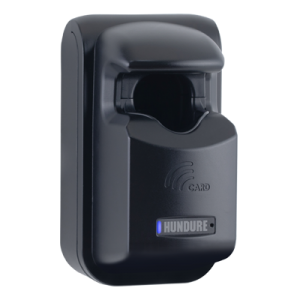

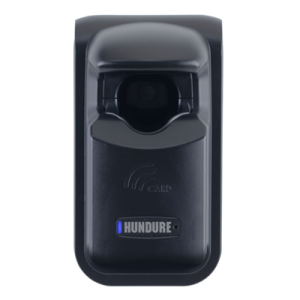

RAC-820FV Series
Finger vien Access Controllor
- The standard model can access 6,000 users with 2 finger vein templates per each user . The storage event record is up to 150,000 events
- Quick and accurate finger vein verification, supports 1:1 authentication & 1:N identification. And audible voice prompts guiding users during verification process.
- High security, using encryption with random code to saving finger characteristic.
- ?Built-in TCP/IP communication interface to PC.
Feature：
?
- The standard model can access 6,000 users with 2 finger vein templates per each user . The storage event record is up to 150,000 events.
- Quick and accurate finger vein verification, supports 1:1 authentication & 1:N identification. And audible voice prompts guiding users during verification process.
- High security, using encryption with random code to saving finger characteristic.
- Unique ID or Block read format supported and programmable key value.
- Provide 32 working shifts and 32 siren schedules. Able display current shift or active alarm.
- Provide 100 holiday schedules per year.(per week).
- Blacklist to prevent unknown usage of lost card.
- Built-in TCP/IP communication interface to PC.
- Casing tamper proof detection and door tamper alarm.
- Watchdog function secures system free from halting.
Specification：
| Read Format | MIFARE? (13.56 MHz) |
| Input Ports | 3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1) |
| Output Ports (Built-in) | Relay x 1 (Door Lock) |
| Output Ports (External) | O.C. Output x 2 (Door Lock / Alarm or Siren, external ACU-30) |
| Cardholers | 18,000 |
| Events | 150,000 |
| Finger Vein Capacity | 6,000 user capacity. ( 2 finger vein templates per person) |
| Identification Mode | 1：1 / 1：N |
| Identification Time | 1：1 <= 1 sec.；1：2000 <= 2 sec. |
| FAR | <= 0.0000067% (1 / 1,500 million) ※Note 1 |
| FRR | <= 0.01% (1 / 1 million) ※Note 1 |
| IP Setting | Command setting by keypad |
| Power Input | DC 12V / 1.5A |
| Current Consumption | 1.5A (max.) |
| Comm. Interface | TCP/IP |
| Operating Temp. | -20° C~50° C / -4° F ~ 122° F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension | 137mm(L) x 75mm(W) x 91mm(H) |
※ Note 1: The highest security level, support 1: 1 authentication.
Product?Information：
| Model | Description | Downloads |
| RAC-820PMFV | MIFARE? (13.56 MHz) finger vein access controller |  |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | RAC-820-V Series | |
