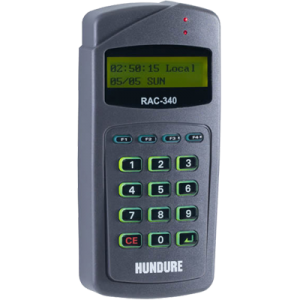

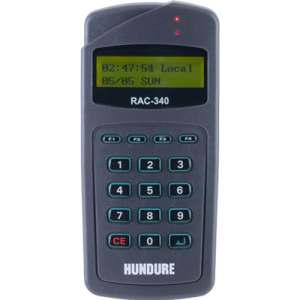

RAC-340 Series
Standalone Access Controller
- Supports network or standalone operation.
- Provide RS-485 communication, able expandable to 64 sets by RS485 interface.
- Watchdog function secures system free from halting.
- Function keys of access control and shifts which convenient to personnel to generate time attendance reports.
- Conditional Unlock Door function, able open 1~9,999 seconds per time.
Feature：
?
- Supports network or standalone operation.
- Watchdog function secures system free from halting.
- Graphic Display with backlight, LCD Display of date, time, weekday and controller status.
- Conditional Unlock Door function, able open 1~9,999 seconds per time.
- 8 sets siren output. (external connection via ACU-30)
- Function keys of access control and shifts which convenient to personnel to generate time attendance reports
- ?Unique ID or Block read format supported.(RAC-340PMA)
- Provide RS-485 communication, able expandable to 64 sets by RS485 interface.
- Support swipe card and card with pin codes enter modes and door relay time from 1~600 seconds.
- Duress card / code setting. When door opened in the emergency, controller will send signal to control center at the same time for tracing and rescue.
- Casing tamper proof detection and door tamper alarm. Programmable door sensor detection time from 1~600 seconds and able set relay or reader beep of alarm type.
Specification：
| Read Format | EM (125 KHz) or MIFARE? (13.56 MHz) |
| Input Ports | 3 Sensors (Door Sensor x 1、Exit Button x 1、Case Sensor x 1) |
| Output Ports | O.C. Output x 2 (Door Lock / Alarm or Siren, external ACu-30) |
| Cardholders / Events | 1,024 / 800 |
| ID Setting | DIP switch setting |
| Power Input | DC 12V / 1A |
| Current Consumption | 300mA (max.) |
| Comm. Interface | RS-485 |
| Operating Temp. | 0° C~55° C / 32° F ~ 131° F |
| Relative Humidity | 20% ~ 80% (Non-condensing) |
| Dimension | 140mm(L) x 65mm(W) x 25mm(H) |
Product?Information：
| Model | Description | Downloads |
| RAC-340PEA | EM (125 KHz) standalone access controller |  |
| RAC-340PMA | MIFARE? (13.56 MHz) standalone access controller | |
Related Resources：
| Resource | Model | Downloads |
| Quick Start Guide | RAC-340 Series | |
